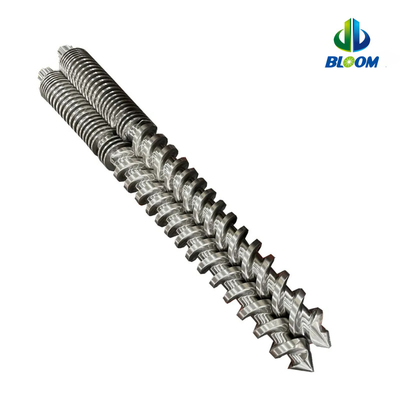

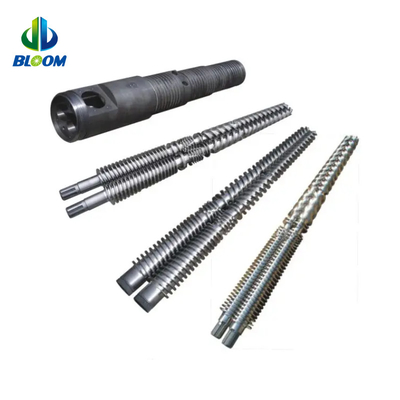

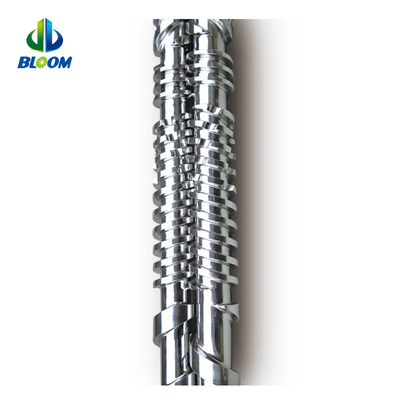

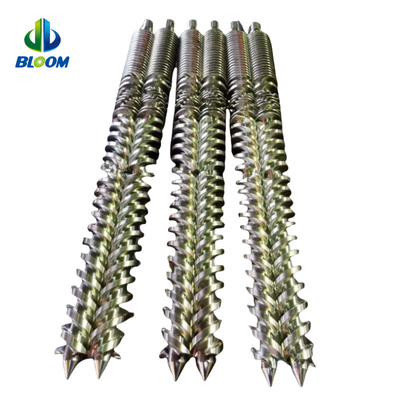

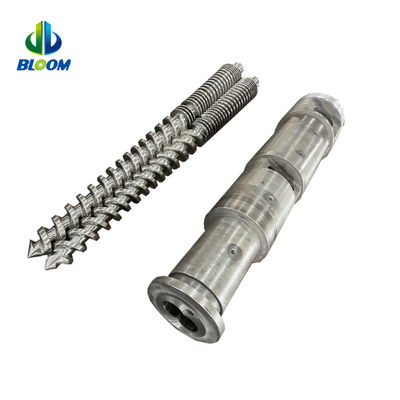

A conical twin-screw refers to a pair of intermeshing screws used in extruders or processing
machinery, characterized by a tapered design where the screw diameter gradually decreases
from the feeding zone to the discharge end. It is a tapered, intermeshing screw pair designed
for optimized material processing in extrusion systems.
| MAIN SPECIFICATION | |||
| Specification | Working length(mm) | Extrusion ability(kg/h) | Rotation speed of screw(rpm) |
| φ35/φ77 | 810 | 40-70 | 5~50 |
| φ45/φ90 | 990 | 50-80 | 5~45 |
| φ50/φ105 | 1070 | 100-150 | 4~45 |
| φ51/φ105 | 1220 | 100-150 | 4~45 |
| φ55/φ110 | 1220 | 120-180 | 4~40 |
| φ60/φ125 | 1320 | 150-200 | 4~40 |
| φ65/φ120 | 1440 | 200-250 | 4~40 |
| φ65/φ132 | 1440 | 200-250 | 4~40 |
| φ70/φ140 | 1460 | 220-300 | 4~40 |
| φ75/φ150 | 1480 | 250-300 | 4~35 |
| φ80/φ143 | 1800 | 300-360 | 4~35 |
| φ80/φ156 | 1660 | 300-360 | 4~35 |
| φ92/φ188 | 2000 | 400-500 | 4~35 |
