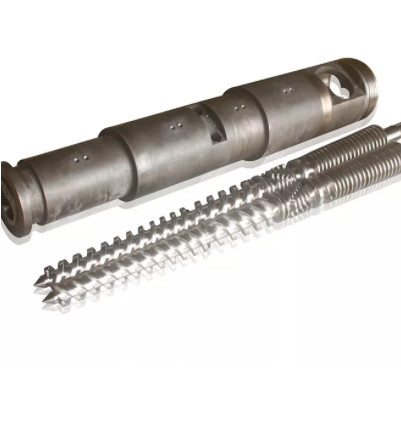

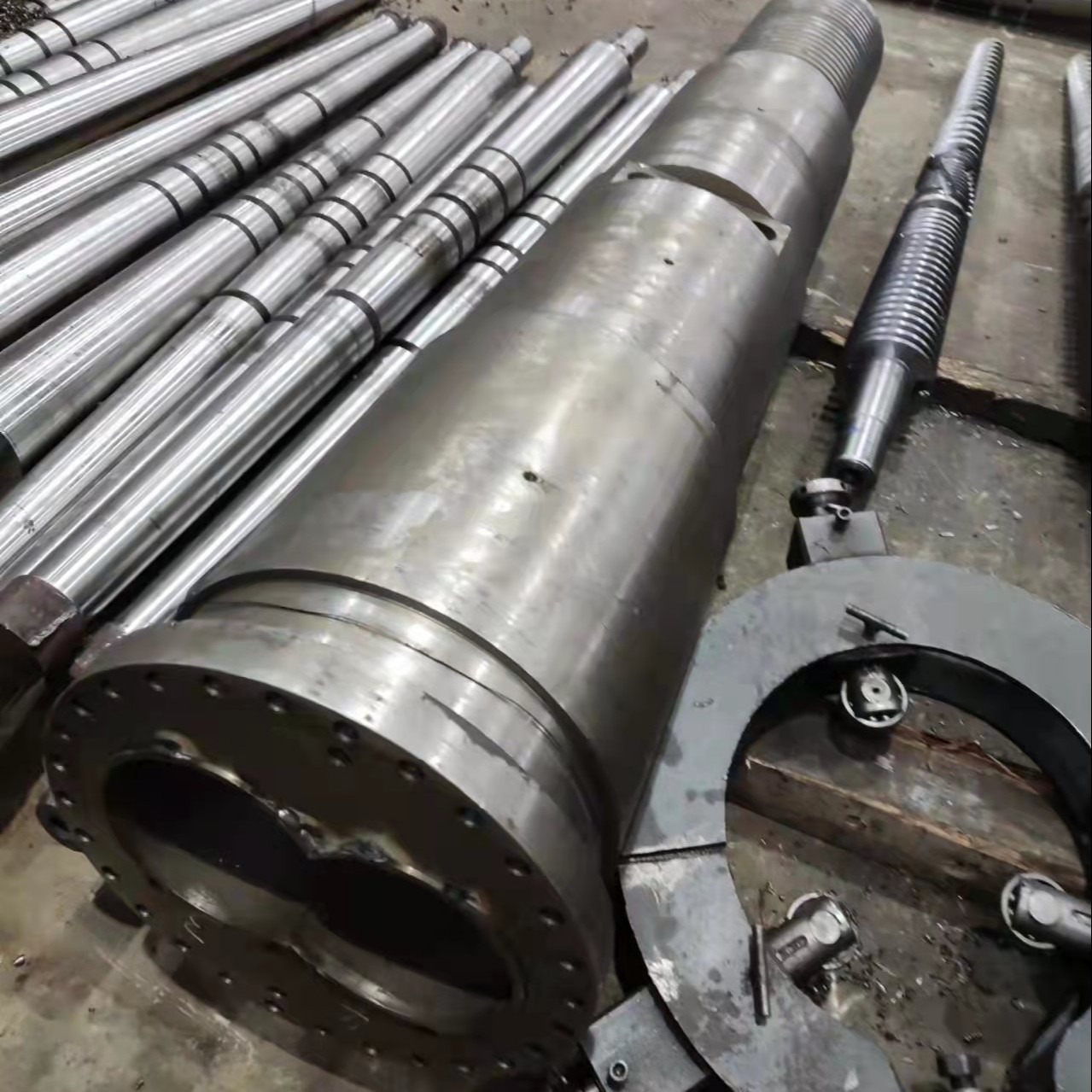

Conical Twin Screw Barrel Hot Sale Nitrided Bimetallic Screw For Extruder Machine
1 . Description
Our conical-twin screw barrel is mainly used for processing PVC products, such as PVC pipes, profiles, sheets, pellets and films.
this series of conical twin screw barrels bring advantages such as long lasting service life, high output and better mixing and
improved homogeneity. The screw geometry design has been further optimized and can also be customized according to your specific
PVC material formulations.
2 . Models
Most common models of the conical twin screw barrel
45/90, 51/105, 55/110, 55/120, 65/132, 80/156, 92/188
Application: PVC pipe, sheet, profile, film, foam board, pellets.
3 . Material with processing technology
|
Base Materials: |
1)38CrMoAlA(SACM 645) 2)42CrMo(AISI 4140) 3)Cr12MoV(SKD11) 4)4Cr5MoSiV1(SKD61) 5)9Cr18MoV 6)40Cr |
|
Bimetallic Alloy Materials: |
1)Fe-based alloy 2)Ni-based alloy 3)Co-based alloy 4)Tungsten carbide |
|
Processing Technology: |
Heat treatment High-frequency quenching Nitriding treatment Hard-chrome electroplating Bimetallic alloy welding Bimetallic alloy centrifugal casting |
4 . Surface Treatment
Heat Treatment
High FrequencyTreatment
Nitriding treatment(120Hours):
Depth of Nitrided Layer: 0.5-0.8mm
Hardness of Nitrided Layer: 900-1020Hv(HRC56°-65°)
HardChrome Plating treatment:
Thickness of Hard Chrome Plating Layer:0.05-0.10mm
Hardness ofHard Chrome Plating Layer: ≥950HV
Nickel alloyplating.treatment:
Bimetallic barrel / Cylinder: Centrifugal Casting(Inlay Alloy)
BimetallicScrew: Plasma Alloy Coating Spraying
Depth of Bimetallic Layer: >2mm
Hardness of Bimetallic Layer: HRC55°-72°
Spraying corrosion wear-resisting dual metallayers
5 . Comparsion of the output (LDPE)
Pressure is generated if resin passes over the barrier, forcing any air in the melted resin back to the feed side and effectively preventing the intrusion of air bubbles on the sub flight side. This is highly effective with resins that generate bubbles such as PS, PA, PET and EVOH.
6 . Conical twin screw and barrel application
1)PP
2)PE
3)PVC
4)WPC
5)SHEET/PIPE/PROFILE/ FOAM BOARD
6)CRANULAR TWIN SCREWS EXTRUDERS
7 . As per customer's demand,we can also supply below:
PVC/PE Film Blowing Screw;
Blow Molding Screw;
PS/PE/PP/ABS Sheet Extrusion Screw;
PE Aluminum Plate;
PPR Pipe Screw;
EVA Extrusion Screw;
HDPE High efficiency Screw;
PET Straps Screw;
XPS/EPE Foamed Screw;
Granulation Screw,Vented single screw etc.
