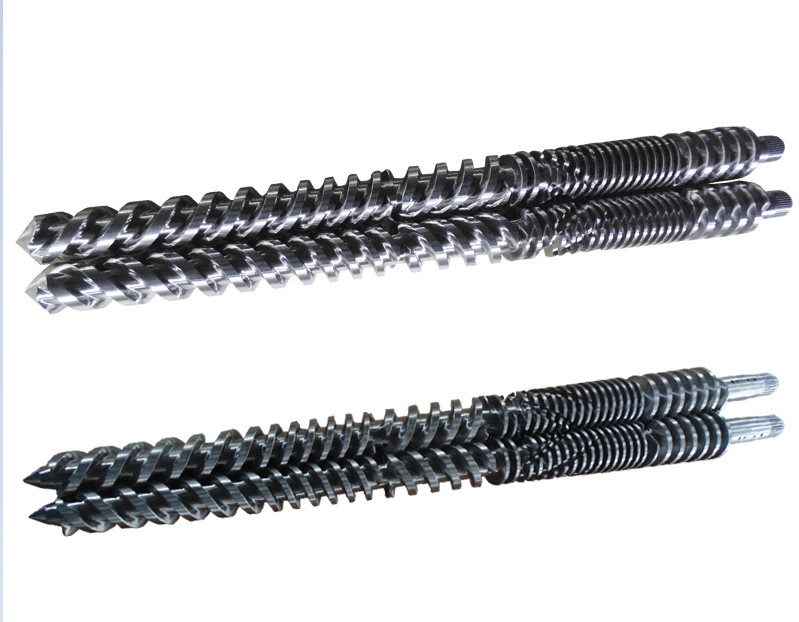

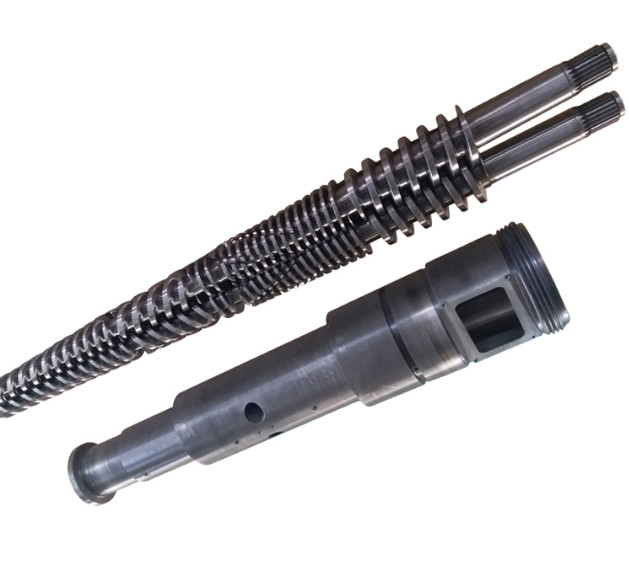

Theysohn CON50/CON40/CON63 Conical Twin Screw Barrel
Theysohn Extruder Screw And Barrel For Pvc Pipe / Wpc / Profile
1 . Description
Our various type extruder conical twin screw barrel for different plastic raw material /domestic/foreign brand extruder machines.We also supply for domestic plastic machinery company.
| MIKROSAN | MCV 55 | MCV 67 | MCV 110 | |||
| BATTENFELD | BEX 65 | BEX 68 | BEX 90 | BEX 92 | BEX 107 | BEX 110 |
| KRAUSS MAFFEI | KMD 60 | KMD 75 | KMD 90 | KMD 110 | KMD 114 | KMD 130 |
| CINCINNATI | ARGOS 72 | ARGOS 90 | ARGOS 93 | ARGOS 114 | ARGOS133 | ARGOS 135 |
| THEYSOHN | TTS 78R-26 | TTS 88R-24 | TTS 88R-26 | TTS 108R-24 | TTS 108R-26 | TTM 138-28 |
| WEBER | DS 7.22 | DS 8.32 | DS 11.22 | DS 12.32 | DS 13.22 | DS 850 / 2b |
| Base Material | 1)38CrMoAlA(JIS SACM645);2)Cr12MOV(JISSKD-11) ; 3)4Cr5MoSiV1(JIS SKD-61) ;4)42CrMo(AISI4140) |
| Bimetallic Alloy Materials | 1)Fe-based alloy2)Ni-based alloy/Deloroalloy 3)Co-based alloy4)NiCo-based alloy 5)Tungsten carbide/Wolframcarbide |
| Double-alloylevel | Level A - containing Tungsten of40% Level B - containing tungsten of 25% Level C - containing tungsten of15% |
| Surface Treatment | Heat Treatment High FrequencyTreatment Nitriding treatment(120Hours): Depth of Nitrided Layer: 0.5-0.8mm Hardness of Nitrided Layer: 900-1020Hv(HRC56°-65°) HardChrome Plating treatment: Thickness of Hard Chrome Plating Layer:0.05-0.10mm Hardness ofHard Chrome Plating Layer: ≥950HV Nickel alloyplating.treatment: Bimetallic barrel / Cylinder: Centrifugal Casting(Inlay Alloy) BimetallicScrew: Plasma Alloy Coating Spraying Depth of Bimetallic Layer: >2mm Hardness of Bimetallic Layer: HRC55°-72° Spraying corrosion wear-resisting dual metallayers |
4 . Comparsion of the output (LDPE)
Pressure is generated if resin passes over the barrier, forcing any air in the melted resin back to the feed side and effectively preventing the intrusion of air bubbles on the sub flight side. This is highly effective with resins that generate bubbles such as PS, PA, PET and EVOH.

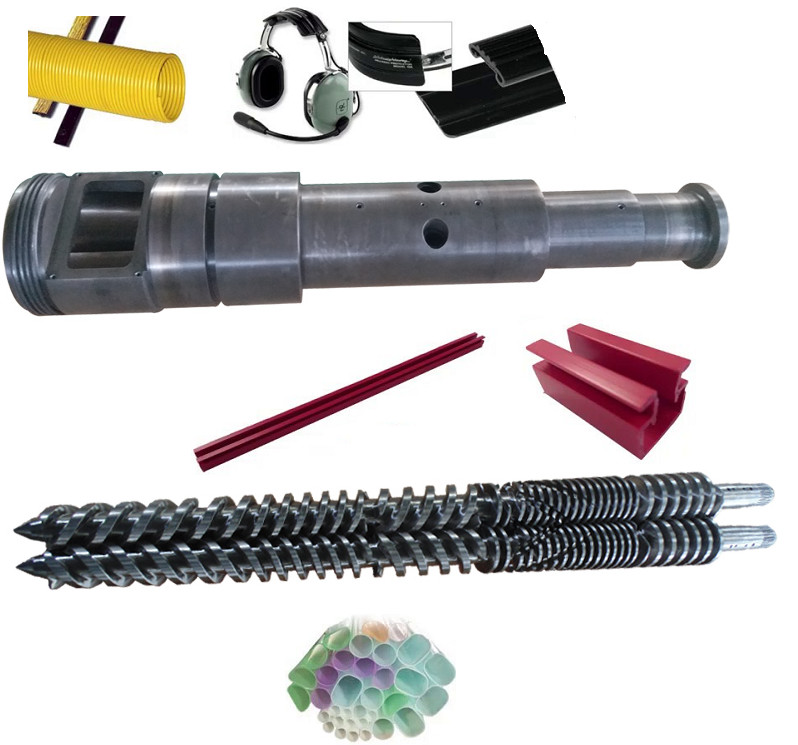

5 . Parallel twin screw and barrel application
1)PP
2)PE
3)PVC
4)WPC
5)SHEET/PIPE/PROFILE/ FOAM BOARD
6)CRANULAR TWIN SCREWS EXTRUDERS
6 . As per customer's demand,we can also supply below:
PVC/PE Film Blowing Screw;
Blow Molding Screw;
PS/PE/PP/ABS Sheet Extrusion Screw;
PE Aluminum Plate;
PPR Pipe Screw;
EVA Extrusion Screw;
HDPE High efficiency Screw;
PET Straps Screw;
XPS/EPE Foamed Screw;
Granulation Screw,Vented single screw etc.
