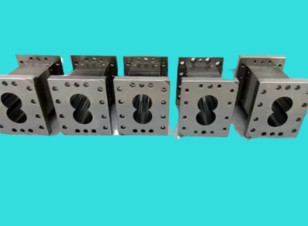

Berstoff Parallel Twin Screw Barrel Elements Bimetallic Material Pip Sheet Extruder
1 . Description
|
Production name: |
Screw barrel |
Brand Name: |
BLM |
|
Model Number |
ZE62 |
Material: |
45# steel + SAM39 lining |
|
Place of Origin |
Jiangsu, China (Mainland) |
Heat treatment |
Vacuum quenching |
|
Screw Diameter |
60.9 mm |
Surface treatment |
Sand blasting |
2 . Types of barrel
Standard for classification: Design geometry Standard for classification: With inner or not
Feeding barrel * Solid barrel
3 . Materials
45# steel
4 . Standard Barrel Parameter Table
| Standard Barrel Parameter Table (selection table) | |||
| Model | Size(mm) W.H.L | Hole Diameter(mm) | Center Distance(mm) |
| JN-20 | 115.105.132 | Φ23 | 18.4 |
| JN-30 | 135.115.120 | Φ30.6 | 26 |
| JN-35 | 140.120.140 | Φ36 | 30 |
| JN-36 | 160.140.150 | Φ36 | 30 |
| JN-40 | 175.145.160 | Φ41.6 | 34.5 |
| JN-50 | 190.150.190 | Φ51 | 42 |
| JN-52 | 200.155.210 | Φ52 | 43 |
| JN-53 | 210.160.220 | Φ53.3 | 48 |
| JN-58 | 220.175.240 | Φ58 | 48 |
| JN-60 | 210.170.240 | Φ60 | 52 |
| JN-65 | 210.170.240 | Φ63 | 52 |
| JN-75 | 260.200.290 | Φ71.8 | 60 |
| JN-85 | 280.215.320 | Φ81.9 | 67.8 |
| JN-92 | 310.240.360 | Φ92 | 78 |
| JN-95 | 310.240.360 | Φ94 | 78 |
| JN-110 | 330.240.420 | Φ109 | 91.5 |
| JN-125 | 390.290.500 | Φ125 | 98 |
| JN-135 | 370.300.410 | Φ134 | 110 |
