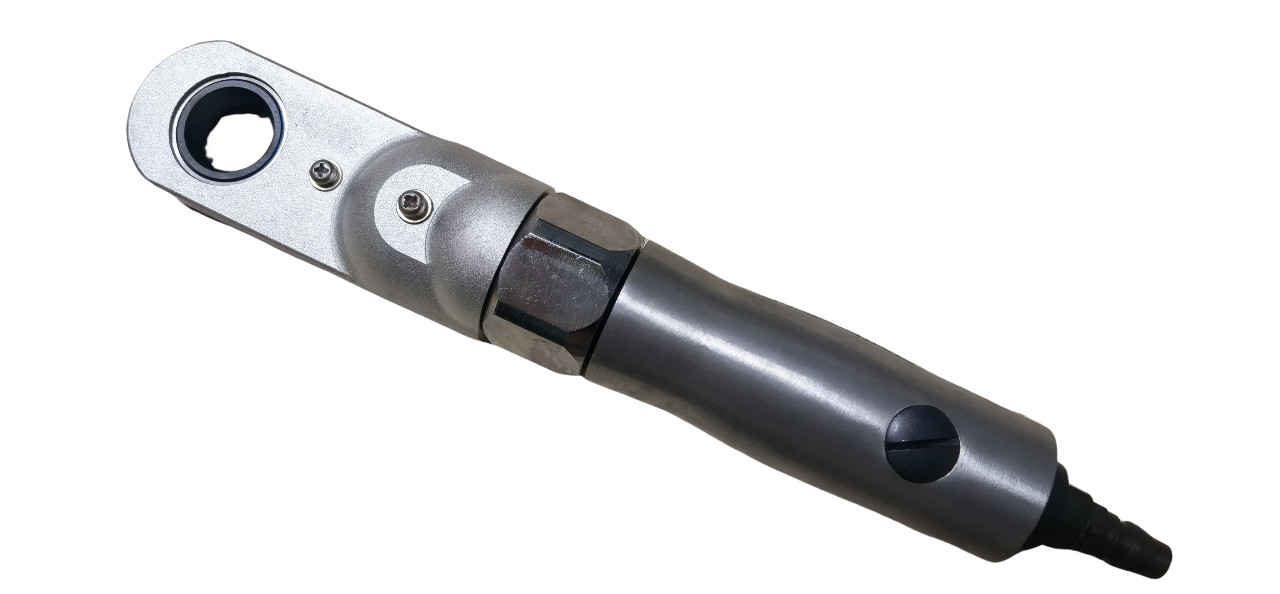

Penumatic Tip Dresser Using Compressed Air for Grinding Electrode Cap
1. Main description
Tip dresser includes tip dresser tool,cutter blade,cutter holder. All kinds of standard tip dresser cutter blade can be offered by our company. Customized tip dresser cutter according to your drawing can also be satisfied.It is powered by compressed air.Its rotating speed can be around 1300RPM.Tip dresser helps maintain weld consistency and quality in spot welding.
2. Main Parameter of Double Sides Penumatic Tip Dresser
|
Product Name |
Double Sides Penumatic Tip Dresser |
|
Model No |
BLM-2 |
|
Application Method |
Hand hold |
|
Motive Power |
Compressed Air |
|
Grinding Cutter |
Normal |
|
Compressed Air Pressure |
0.4Mpa-0.6Mpa |
|
Grinding Pressure |
0.9-1.2KN |
|
Suitable Cap Tip Size |
Φ13-φ20 |
|
RPM |
300-500RPM |
|
Torque |
110N,m |

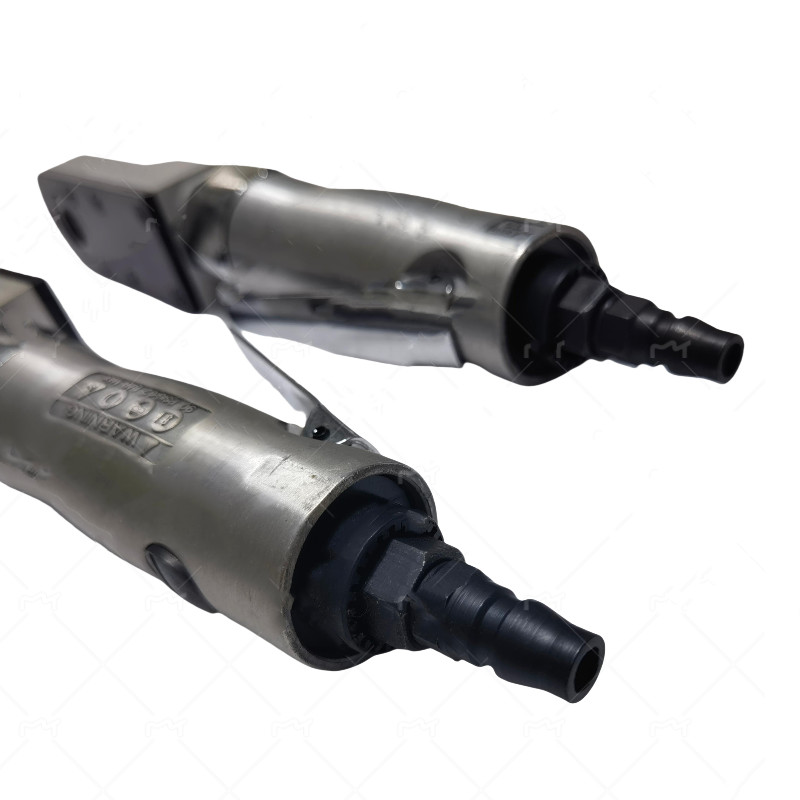

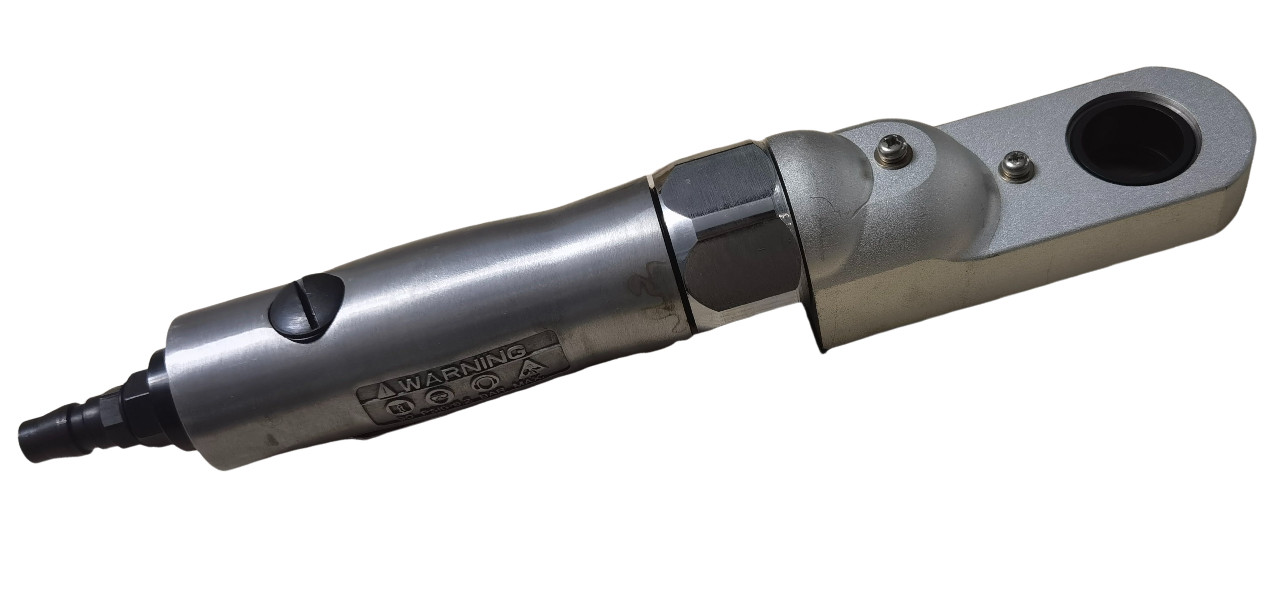

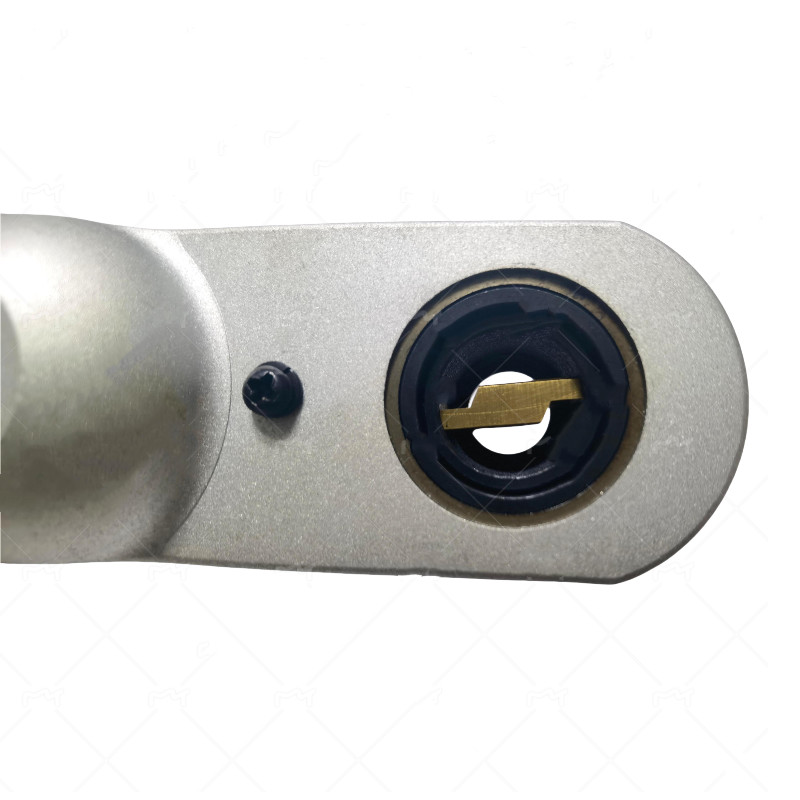

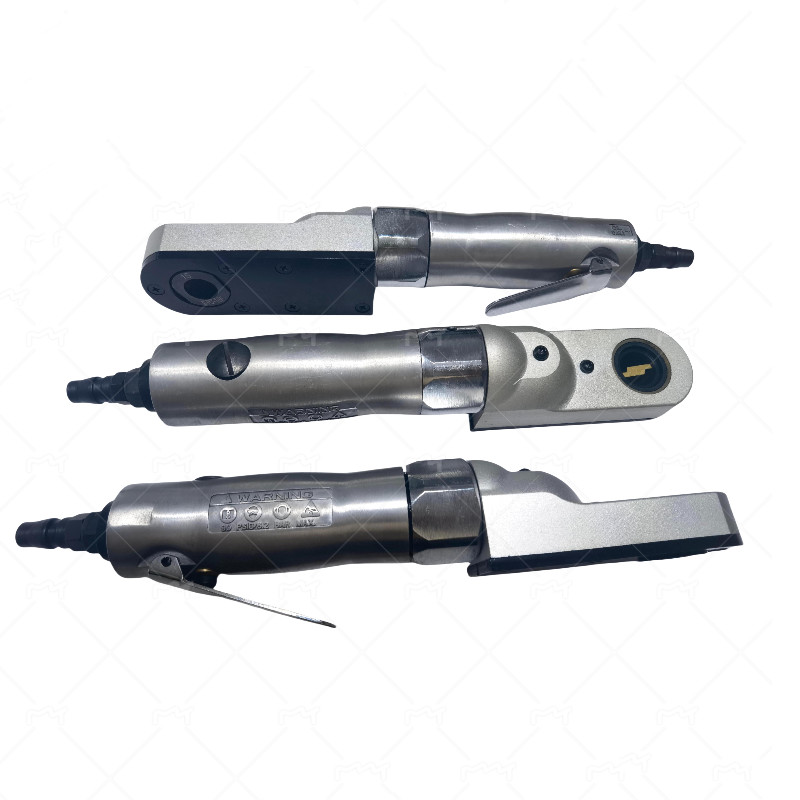

3. Some dstails
4. Grinding performance (Before and after)
5. Certificates
6. Packages
