Screw Elements and Barrel Section for Parallel Twin Screw Extrusion
Descriptions
|
Product name |
Screw Element |
Material |
W6Mo5Cr4V2 |
|
Brand name |
ANT |
Standard |
GB | DIN |
|
Spline type |
Involute inner spline |
Spline teeth |
22 |
|
Screw type |
Double Flighted |
Hardness |
HRC58-60 |
|
Surface treatment |
vacuum quenching |
Certification |
ISO9001 |
|
Outer diameter of Screw element |
Φ62.4mm |
Inner diameter of Screw element |
Φ40.4mm |
Twin screw barrel is gradually adopted by many manufacturers because of its high efficiency. Compared with single screw barrel, twin screw barrel has higher requirements for machining clearance. Our company has a professional team to help users solve design problems, and can also process according to the samples or drawings provided by customers.
injection screw barrel and bimetallic injection screw and barrel by materials 38CrMoAlA or 42CrMo and so on,for many type of injection mould machines,such as HAITIAN,CHEN HSONG,JSW,HAITAI,BRCHO,and so on.
1. Diameter of screw: D12-D300mm
2. L/D ratio of screw: 10 - 26
Grade available:
1. Standard grade: 38CrMoAlA + nitriding 96 hours
2. Bimetallic grade: 38CrMoAlA + bimetallic alloy
3. TC-A grade: Tungsten carbide 35%
4. TC-B grade: Tungsten carbide 25%
5. TC-C grade: Tungsten carbide 15%
Injection screw barrel and bimetallic injection screw and barrel
1)38CrMoALA
2)42CrMo
3)9Cr18MoV
4)CW6Mo5Cr4V2
5)Various high quality alloy steels,According to different usage, the choose for alloy is different, some require for abrasion-resistant while some require for corrsion-resistant. For standard, we have Fe-based, Ni-based,W2Calloy,Tunsten alloy etc for choice.
Application:
Rubber,various high glass fiber, mineral fiber and PPA,PPS, PA66, LCP,VO fire protection, ferrous power, magnetic powder and etc.
Treatment:
Heat-treatment
Nitriding treatment
Electroplate hard-chrome
High-frequency quenching
Spraying corrosion wear-resisting dual metal layers
Vacuum quenching
Bloom supplies cylinder barrel suitable for the following extruder products lines :
-APV -KOBE -OMC
-Buhler -KraussMaffei -Theysohn
-Buss -Berstorff- -Toshiba
-Clextral -Labtech -USEON
-Lantai - others
-JSW -Leistritz
-Keya -Maris

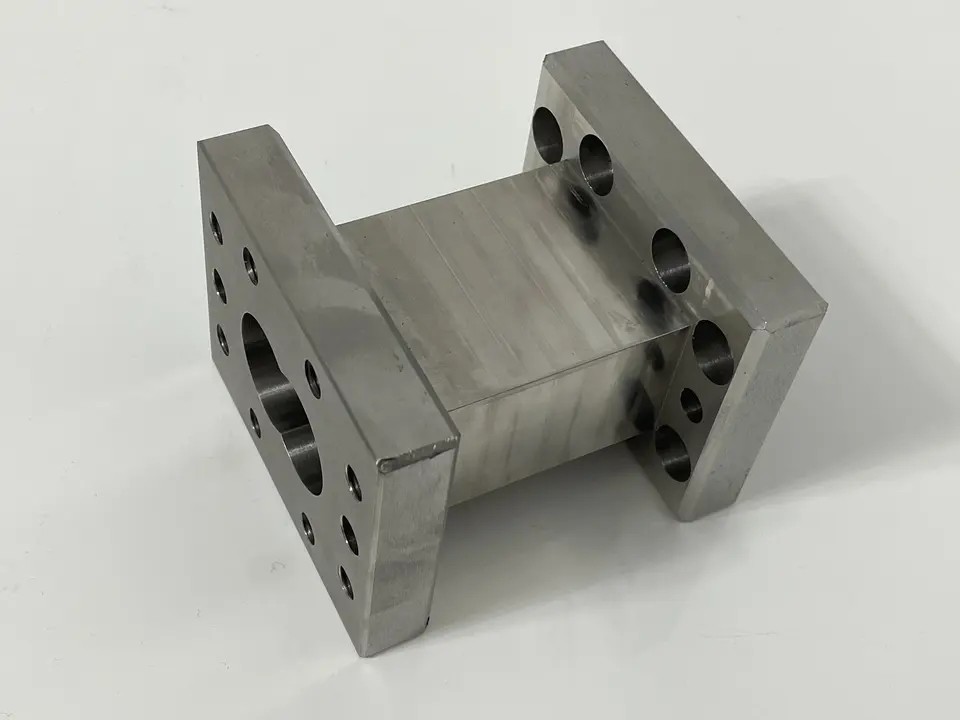

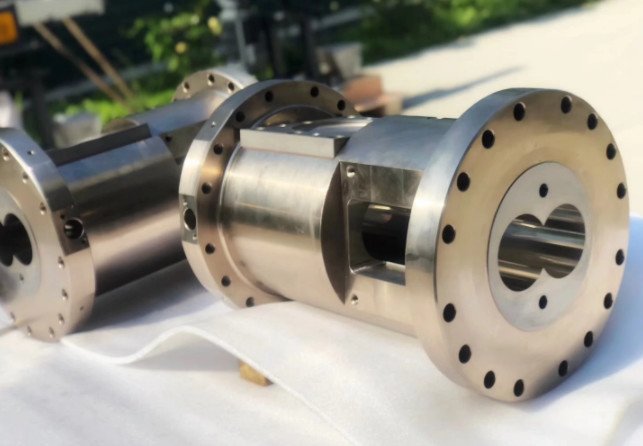

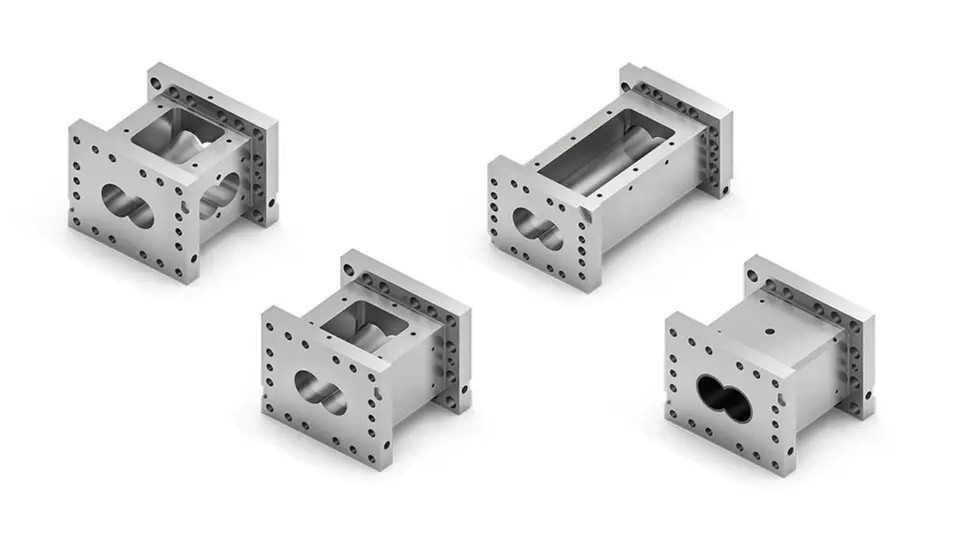

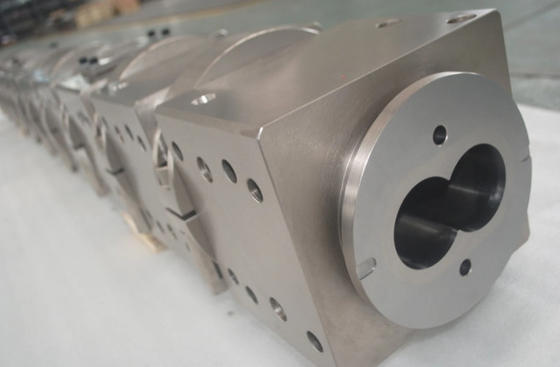

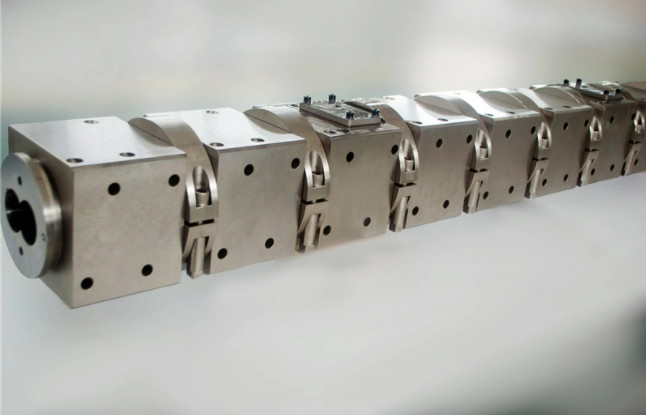

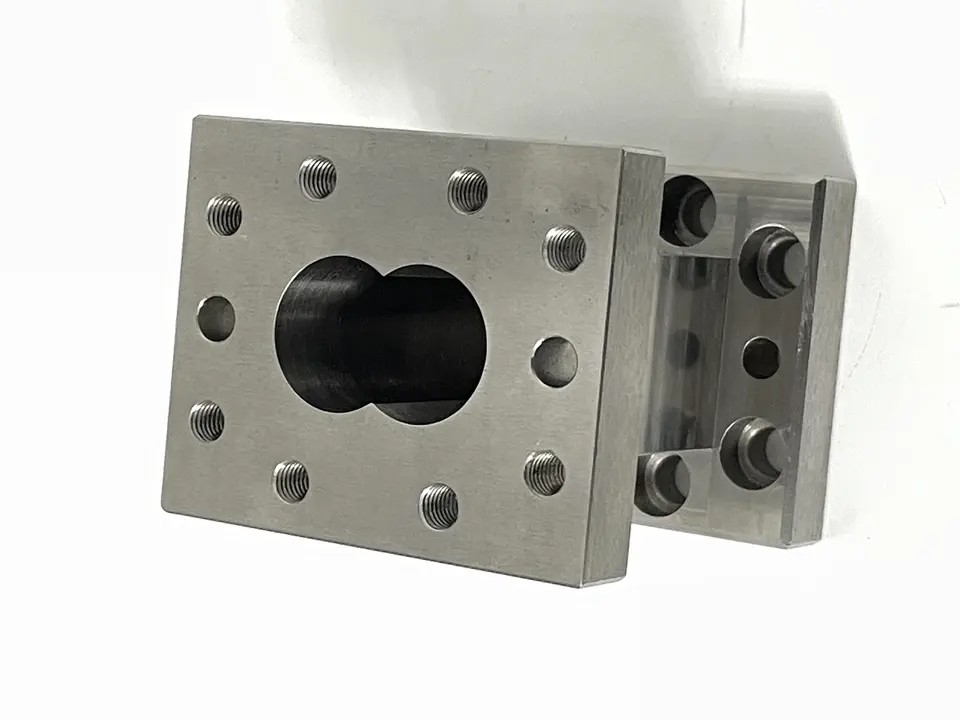

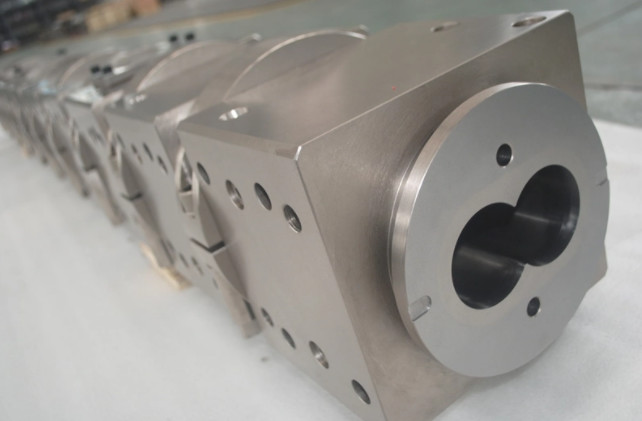

Types of Barrels
Standard for classification: Design geometry Standard for classification: With inner or not
* Feeding barrel * Solid barrel
* Closed barrel * Barrels with inners
* Vent barrel
* Combi barrel
* Extended degassing barrel
* Combi barrel with backward venting
We offer a broader choice of materials:
Solid barrels
*Nitrided steel barrels *Tooling steel barrels *Bimetallic
Barrel with installed inner
* made of PM-HIP solid *WR13
By working closely with customers in choosing optional materials,we can minimize wear and tear and associated costs.
