Twin Screw Extruder Spare Prart Screw Element For Working Rubber Or Plastic
1 . Factory introduction
Our factcory is a professional manufacturer of nickel-based alloys, Hastelloy alloys, tungsten carbide alloys, cobalt-based alloys and H.I.P inner bushings.
We have provided super wear-resistant and high corrosion-resistant bushings for many domestic and foreign parallel twin-screw extruder customers and modification companies, and can develop high-quality non-standard products according to customer needs and in combination with actual working conditions. Ouzi products Excellent performance, stable quality, reasonable price, prompt delivery and perfect after-sales service.
At present, our factory's workshop area exceeds 3,000 square meters, and another 3,000 square meters is in the planning and design, covering the complete production process of material research and development, main parts production and testing. The company has 6 technicians, more than 40 employees, and many production and testing equipment imported from Taiwan and Germany.
Parallel co-rotating twin screw extruder have excellent mixing performance, good self cleaning performance and flexible modular configuration characteristics which make them suitable for processing different types of material systems, and are extensively used in fields of polymer processing, foodstuff processing and chemical products, especially for various high molecular materials.
In most cases, parallel co-rotating twin screw extruder are used as mixing euqipment. In processing high molecular materials,the modification process and master batch preparation of polyolefin materials and engineering plastics requires sufficient and intensive mixing, which differs depending on material systems, excellent equipment performance, reasonable mixing process,advanced combination technique and rich processing experience are the key factors determining the success and efficiency of mixing.
2 . D2 material
Cold work die steel D2 is a high-carbon and high-chromium cold work die steel widely used in the world. It is a ledeburite steel with high hardenability, hardenability and high wear resistance; Good corrosion resistance after polishing and small heat treatment deformation.
| Si | ≤0.60 |
| Mn | ≤0.60 |
| S | ≤0.030 |
| P | ≤0.030 |
| Cr | 11.50-13.00 |
| Ni | ≤0.25 |
| Cu | ≤0.30 |
| V | ≤1.00 |
| Mo | 0.70-1.20 |
Mechanical property
Hardness: Annealed,≤255HB, indentation diameter ≥3.8mm; Quenched,≥59HRC
3 . The advantages of using the D2 material to make extruder screw elements
a . Wear resistance: D2 material is a high carbon high chromium tool steel with excellent wear resistance. During extruder operation, threaded elements frequently contact and rub against plastic material, so good wear resistance is required to prolong service life. The high hardness and wear resistance of the D2 grade make it an excellent choice.
b . Corrosion resistance: D2 material also has good corrosion resistance, which can resist chemical corrosion caused by contact with plastic materials. This is very important for the long-term stability and reliability of the extruder screw elements.
c . High strength: D2 material has high strength and toughness, and can withstand the stress under high pressure and high temperature conditions in the operation of the extruder. This helps reduce deformation and breakage of threaded elements and improves production efficiency and product quality.
d . Processing performance: D2 material is easy to process and manufacture, and the required hardness and performance can be obtained through heat treatment. This makes it possible to manufacture custom-made extruder thread elements with complex thread structures.

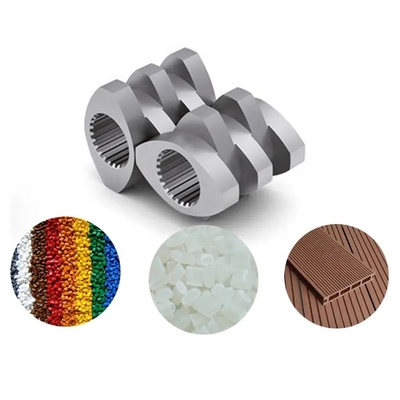

4 . Application:
(1) Biodegradable material: PE/PLA/PBAT+starch/additives etc.;
(2) Thick masterbatch:PE, ABS, PS, PP+ pigment, additives;
(3) Filling modification: PE/EVA+ calcium carbonate, talc powder,TiO2,carbon black, etc.;
(4) Enhanced modification:PP,PA,PBT, ABS, AS, PC, POM, , PET +glass fiber, carbon fiber;
(5) Blending alloy: PC+ABS, PA+ABS, CPE+ABS, PP+EPDM, PA+EPDM, PP+SBS etc.;
(6) Engineering plastics: ABS,PEEK,PC etc.;
(7) Color masterbatch: PE, ABS, PS, EVA, PET, PP+pigment, auxiliaries
5 . Our QC Control
Spectroscopic Component
German Digimar Altimeter
Dye penetrant inspection(PT Test)
Ultrasonic Flaw Detection (UT Test)
6 . Our detection
Three Coordinate Measuring Machine
Rockwell Hardness Tester
Carbon Sulfur Detector
Abrasive Wear Testing Machine
7 . Our Advantage
1) Independent research and development of materials and processes can ensure the performance and process of materials to the maximum extent, and greatly prolong the service life compared with ordinary products.
2) Independently develop the process of key products, and constantly improve and enhance the old process to achieve the best product performance.
3) Continuously improving and optimizing product appearance of the composite layer ,which greatly improved the service life of products.
Welcome to inquiry:
BLOOM(suzhou) Materials Co.,Ltd
Contact Person: Ms. Miranda
Tel: 0086-15250395817
Email: sales1@ttxalloy.com
Fax: 86-512-89598069
