D2 Steel Material Of The Extruder Screw Elements With Corrosion Resistance For The Masterbatch Industry
1 . Factory introduction
Our factcory is a professional manufacturer of nickel-based alloys, Hastelloy alloys, tungsten carbide alloys, cobalt-based alloys and H.I.P inner bushings.
We have provided super wear-resistant and high corrosion-resistant bushings for many domestic and foreign parallel twin-screw extruder customers and modification companies, and can develop high-quality non-standard products according to customer needs and in combination with actual working conditions. Ouzi products Excellent performance, stable quality, reasonable price, prompt delivery and perfect after-sales service.
At present, our factory's workshop area exceeds 3,000 square meters, and another 3,000 square meters is in the planning and design, covering the complete production process of material research and development, main parts production and testing. The company has 6 technicians, more than 40 employees, and many production and testing equipment imported from Taiwan and Germany.
2 . D2 material
Cold work die steel D2 is a high-carbon and high-chromium cold work die steel widely used in the world. It is a ledeburite steel with high hardenability, hardenability and high wear resistance; Good corrosion resistance after polishing and small heat treatment deformation.
| Si | ≤0.60 |
| Mn | ≤0.60 |
| S | ≤0.030 |
| P | ≤0.030 |
| Cr | 11.50-13.00 |
| Ni | ≤0.25 |
| Cu | ≤0.30 |
| V | ≤1.00 |
| Mo | 0.70-1.20 |
Mechanical property
Hardness: Annealed,≤255HB, indentation diameter ≥3.8mm; Quenched,≥59HRC
3 . The advantages of using the D2 material to make extruder screw elements
a . Wear resistance: D2 material is a high carbon high chromium tool steel with excellent wear resistance. During extruder operation, threaded elements frequently contact and rub against plastic material, so good wear resistance is required to prolong service life. The high hardness and wear resistance of the D2 grade make it an excellent choice.
b . Corrosion resistance: D2 material also has good corrosion resistance, which can resist chemical corrosion caused by contact with plastic materials. This is very important for the long-term stability and reliability of the extruder screw elements.
c . High strength: D2 material has high strength and toughness, and can withstand the stress under high pressure and high temperature conditions in the operation of the extruder. This helps reduce deformation and breakage of threaded elements and improves production efficiency and product quality.
d . Processing performance: D2 material is easy to process and manufacture, and the required hardness and performance can be obtained through heat treatment. This makes it possible to manufacture custom-made extruder thread elements with complex thread structures.

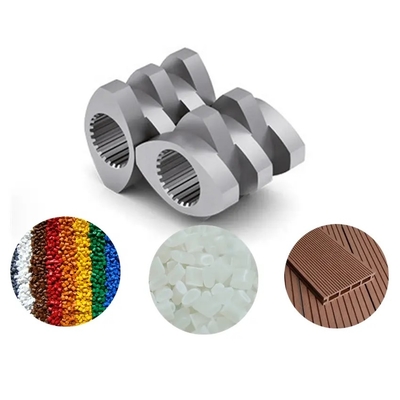

4 . Screw elements made of D2 material are widely used in the following industries
a . Plastic extrusion industry: D2 screw elements are often used in plastic extruders to extrude various thermoplastics, such as polyethylene, polypropylene, polyvinyl chloride, etc. These threaded elements are used to melt and extrude plastics, and are widely used in the production of plastic products, such as pipes, plates, profiles, etc.
b . Rubber extrusion industry: D2 screw elements are also used in rubber extruders to extrude rubber products, such as seals, pipes, rubber bands, etc. During the rubber extrusion process, the screw element plays the role of heating and plasticizing the rubber for extrusion.
c . Papermaking and textile industry: D2 screw elements are widely used in papermaking and textile equipment. In the papermaking process, threaded elements are used to extrude the pulp, forming the fibrous structure of the paper. In the textile industry, threaded elements are used to extrude fibrous materials such as yarns, filaments, etc.
d . Food processing industry: In food processing equipment, D2 screw elements are often used to extrude food materials such as dough, candy, and chocolate. These threaded elements help heat, plasticize and extrude food materials for use in food production and processing.
5 . Our QC Control
Spectroscopic Component
German Digimar Altimeter
Dye penetrant inspection(PT Test)
Ultrasonic Flaw Detection (UT Test)
6 . Our detection
Three Coordinate Measuring Machine
Rockwell Hardness Tester
Carbon Sulfur Detector
Abrasive Wear Testing Machine
7 . Our Advantage
1) Independent research and development of materials and processes can ensure the performance and process of materials to the maximum extent, and greatly prolong the service life compared with ordinary products.
2) Independently develop the process of key products, and constantly improve and enhance the old process to achieve the best product performance.
3) Continuously improving and optimizing product appearance of the composite layer ,which greatly improved the service life of products.
Welcome to inquiry:
BLOOM(suzhou) Materials Co.,Ltd
Contact Person: Ms. Miranda
Tel: 0086-15250395817
Email: sales1@ttxalloy.com
Fax: 86-512-89598069
