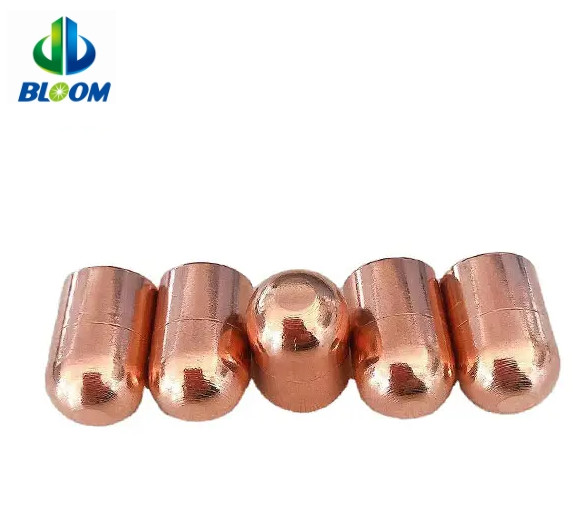

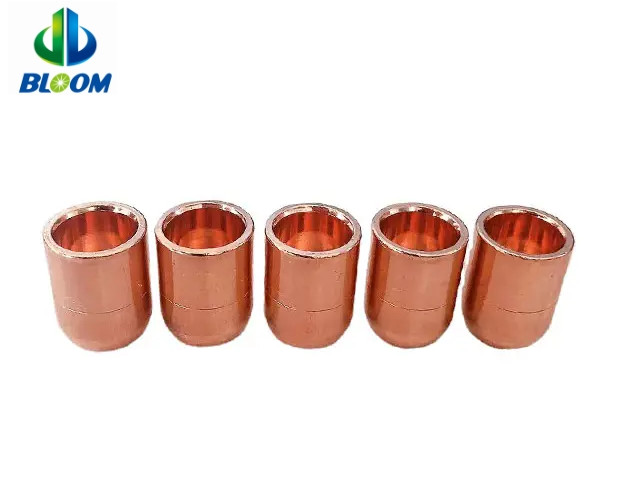

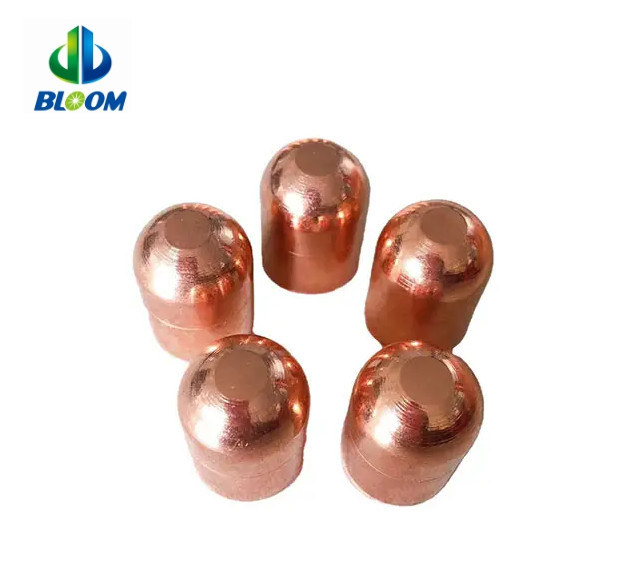

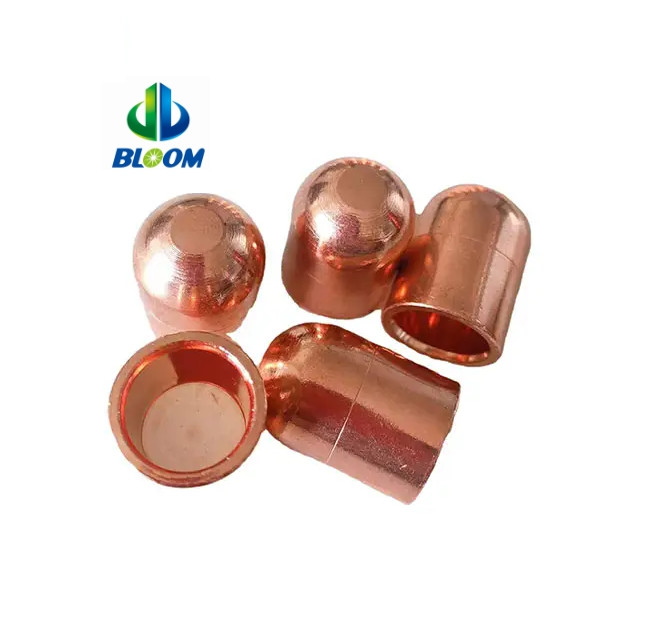

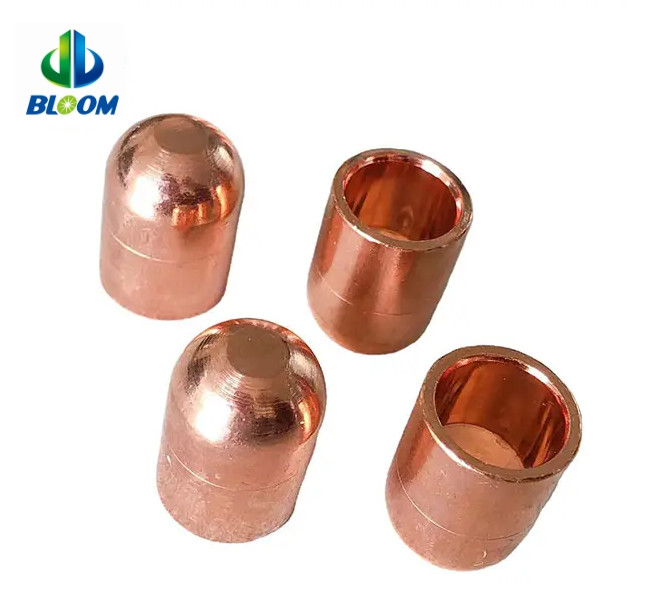

13*20 R8 Style Spot Welding Electrode Cap Tip On Sale
Bloom offer various shapes of spot welding electrodes,cap tip,electrode arm,universal electrode,electrode holder etc. resistance welding consumables.Our spot welding electrodes are made of CuCrZr(CuCr1Zr),CuZr,Al2O3Cu,Beryllium copper,etc. copper material to ensure high quality welding effect. Our electrode has various shapes of electrode caps.Include dome electrode cap,flat electrode cap,pointed electrode cap,radius electrode cap,cone electrode cap,eccentic electrode cap etc. Our spot welding electrode can weld all kinds of workpiece and sheet material.Like stainless steel sheet metal,carbon steel sheet,high carbon steel sheet,low carbon steel sheet,hot form steel sheet metal,galvanized steel sheet etc.Our resistance welding electrode are widely used on automotive welding,spot welding machine,robotic welding equipement.
Welding electrode cap tip is very important in spot welding machine. During welding, cylindrical electrode is used to produce spot welding between the contact surfaces of two overlapping workpieces. During spot welding, first pressurize the workpiece to make close contact, and then connect the current. Under the action of resistance heat, the workpiece contact will melt. After cooling, a solid solder joint will be formed.
| Product Name | Welding Cap Tips |
| Material | CuCrZr / Al2O3Cu |
| Color | Coppery |
| Size | According to Customers' requirement |
| Place of Origin | China |
|---|---|
| Brand Name | Dianjin |
| Item | Electrode cap tip |
| Material | Cucrzr |
| Style | OEM |
| Diameter | 13mm |
| Length | 20mm |
| Angle | R8 |
| Usage | Spot welding |
| MOQ | 1000pcs |
| Feature | Long life time |
| Packing | Carton box |
The 13*20 R8 style cap tip is made of a highly conductive material, typically copper or a copper alloy, and is designed to withstand the high temperatures and pressures generated during spot welding. It has a tapered shape that provides a precise point of contact with the workpiece, ensuring a strong and consistent weld.
A cap tip is a component used in resistance welding, specifically in spot welding machines. It is typically made of a highly conductive material, such as copper, and is used to transfer electrical current to the workpiece during the welding process.
The cap tip is designed to withstand the high temperatures and pressures that are generated during the welding process. It is often made with a tapered shape to provide a precise point of contact with the workpiece, which helps to ensure a strong and consistent weld.
Cap tips are available in various sizes and shapes to accommodate different welding applications. They are an essential component of spot welding machines and play a critical role in the quality and durability of the welds produced.
