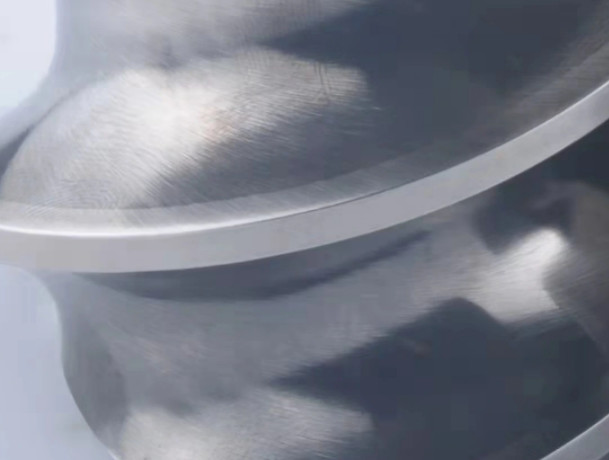

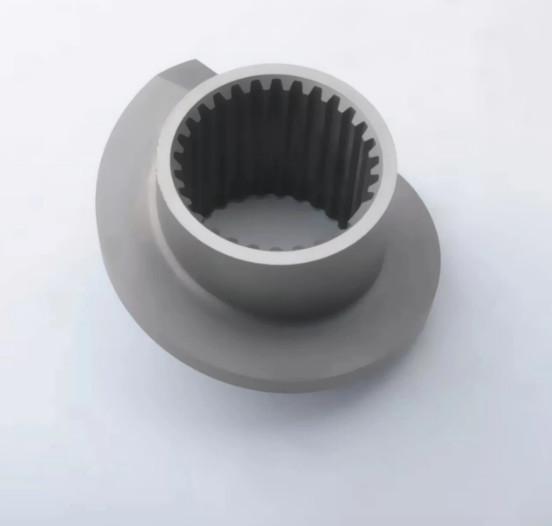

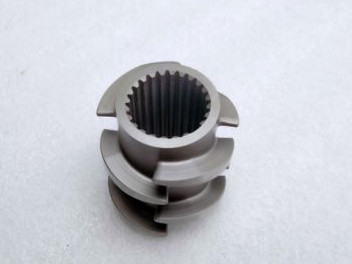

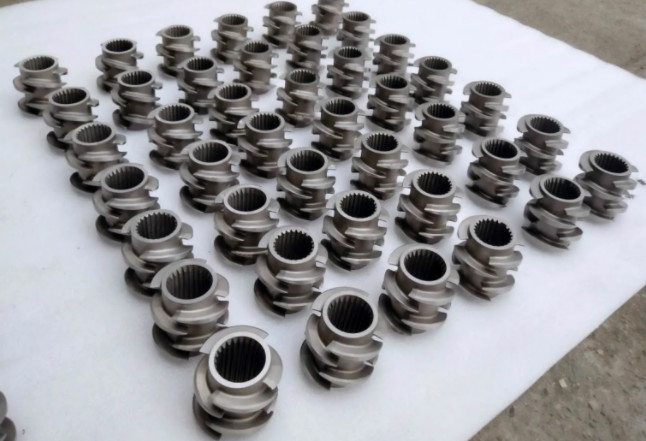

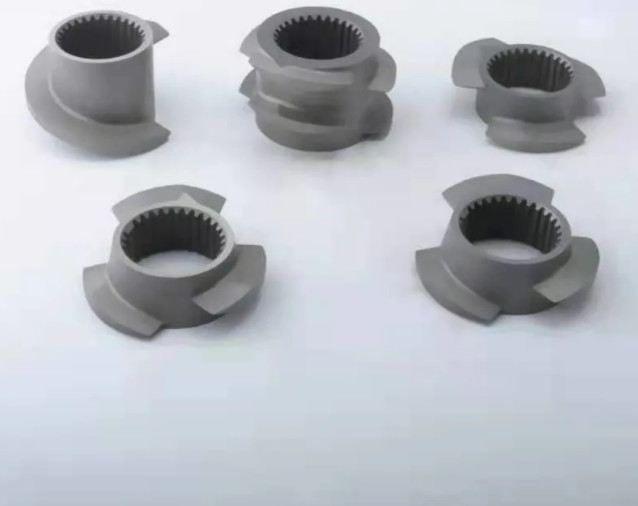

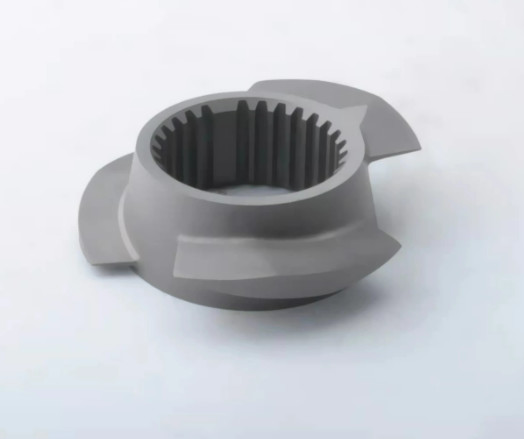

Reciprocating Screw Abrasive Spare Parts for Buss Ko-Kneader Extruder
Description
The Buss Ko-Kneader Extruder is a type of extrusion equipment used in the plastics and rubber industries for compounding, mixing, and processing of high-viscosity materials. It was developed by the Swiss company Buss AG and is known for its unique kneading disc design, which provides excellent mixing performance, efficient heat transfer, and low shear stress on the material being processed.
The Ko-Kneader Extruder operates with a reciprocating screw that moves back and forth in a specially designed barrel, while the kneading discs rotate at a different speed. This process generates high shear forces and intense mixing action, resulting in a homogenous blend of materials.
The Buss Ko-Kneader Extruder can be used for a wide range of applications, including compounding of thermoplastic elastomers (TPE), hot-melt adhesives, masterbatches, polymer alloys, and high-filled systems. Its advanced technology and performance have made it a popular choice for various industries, including automotive, construction, packaging, and medical products.
Bloom supplies cylinder barrel suitable for the following extruder products lines :
-APV -KOBE -OMC
-Buhler -KraussMaffei -Theysohn
-Buss -Berstorff- -Toshiba
-Clextral -Labtech -USEON
-Lantai - others
-JSW -Leistritz
-Keya -Maris
Range of Work
Diameter of 12-350mm
Types of Barrels
Standard for classification: Design geometry Standard for classification: With inner or not
* Feeding barrel * Solid barrel
* Closed barrel * Barrels with inners
* Vent barrel
* Combi barrel
* Extended degassing barrel
* Combi barrel with backward venting
We offer a broader choice of materials:
Solid barrels
*Nitrided steel barrels *Tooling steel barrels *Bimetallic
Barrel with installed inner
* made of PM-HIP solid *WR13
By working closely with customers in choosing optional materials,we can minimize wear and tear and associated costs.
Our Main Materials and Their Application:
For Wear Application:
Tool Steel: W6Mo5Cr4V2
PM-HIP Materials: SAM10, SAM26, SAM39, CPM10V, CPM9V
For Corrosion Application:
Nitrided Steel: 38CrMoAlA
PM-HIP Materials: SAM26, SAM39, CPM10V, CPM9V
For Wear & Corrosion Application:
PM-HIP Materials: SAM26, SAM39, CPM10V, CPM9V
Other Materials: 316L HC276 etc.
|
Standard Barrel Parameter Table (selection table) |
|||
|
Model |
Size(mm) W*H*L |
Hole Diameter(mm) |
Distance(mm) |
|
BM-20 |
115*105*132 |
φ23 |
18.4 |
|
BM-30 |
135*115*120 |
φ30.6 |
26 |
|
BM-35 |
140*120*140 |
φ36 |
30 |
|
BM-36 |
160*140*150 |
φ36 |
30 |
|
BM-40 |
175*145*160 |
φ41.6 |
34.5 |
|
BM-50 |
190*150*190 |
φ51 |
42 |
|
BM-52 |
200*155*210 |
φ52 |
43 |
|
BM-53 |
210*160*220 |
φ53.3 |
48 |
|
BM-58 |
220*175*240 |
φ58 |
48 |
|
BM-60 |
210*170*240 |
φ60 |
52 |
|
BM-65 |
210*170*240 |
φ63 |
52 |
|
BM-75 |
260*200*290 |
φ71.8 |
60 |
|
BM-85 |
280*215*320 |
φ81.9 |
67.8 |
|
BM-92 |
310*240*360 |
φ92 |
78 |
|
BM-95 |
310*240*360 |
φ94 |
78 |
|
BM-110 |
330*240*420 |
φ109 |
91.5 |
|
BM-125 |
390*290*500 |
φ125 |
98 |
|
BM-135 |
370*300*410 |
φ134 |
110 |
