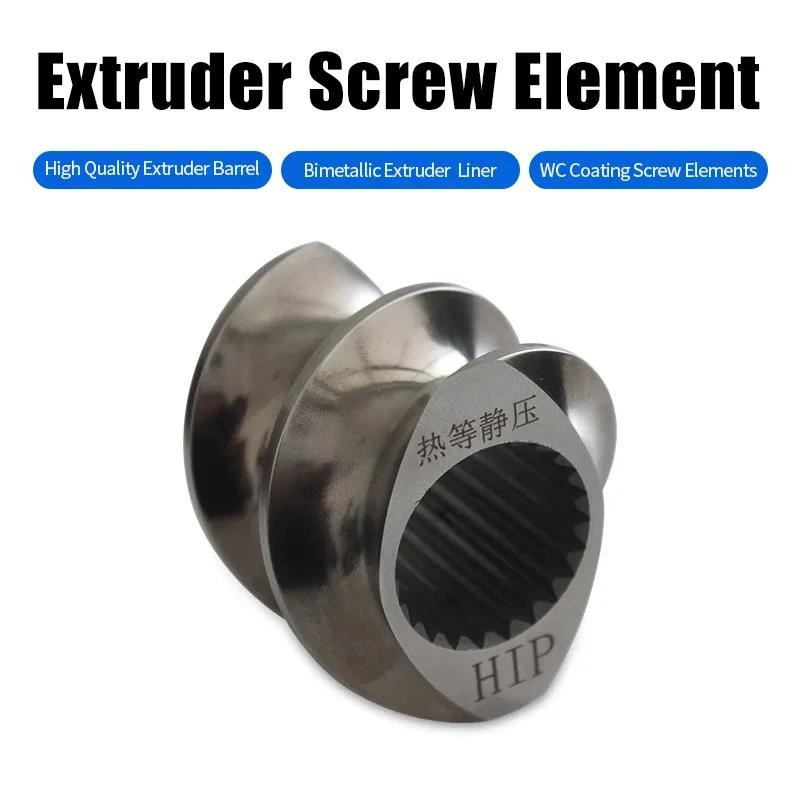

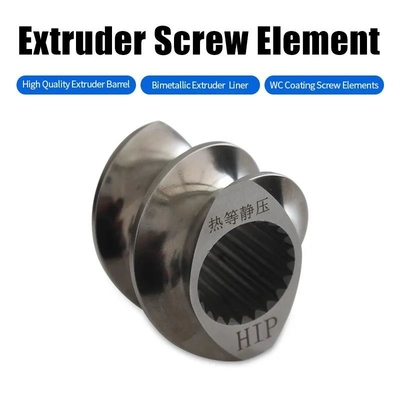

Twin Extruder Screw Spare Parts Plastic Extruder bimetallic Screw And Barrel For Extrusion
Product Description:
Bloom manufacture screw elements,barrels and other extruder machines.Screw elements are the main working parts for twin screw extruder which determined the quality and output of plastic products.With high quality,the screw elements assure plastic molecular mixing,cutting,spreading as well as reacting among themselves etc.Extremely high self cleaning performance assure the high quality of the whole production line,for this,our company combiend our experience for years,the merits about foreign countries and the customer’s use,then take them into action,designed all kinds of suitable processing screw element with reasonable parameters,high self cleaning performance,wear resistance,corrosion-resistance.
The function of screw element is mainly used to convey materials. Feeding and degassing sections generally have the long pitch to improve the material conveying and degassing. For material of low bulk density, feeding sections can use deep channel components to increase feeding capacity. The metering extruded segmented screw elements generally adopt the small pitch which is used to pressurize, improve the density of the material at the die head, and make the extrusion more stable.
| Standard Barrel Parameter Table (selection table) | |||
| Model | Size(mm) W*H*L |
Hole Diameter(mm) | Distance(mm) |
| BM-20 | 115*105*132 | φ23 | 18.4 |
| BM-30 | 135*115*120 | φ30.6 | 26 |
| BM-35 | 140*120*140 | φ36 | 30 |
| BM-36 | 160*140*150 | φ36 | 30 |
| BM-40 | 175*145*160 | φ41.6 | 34.5 |
| BM-50 | 190*150*190 | φ51 | 42 |
| BM-52 | 200*155*210 | φ52 | 43 |
| BM-53 | 210*160*220 | φ53.3 | 48 |
| BM-58 | 220*175*240 | φ58 | 48 |
| BM-60 | 210*170*240 | φ60 | 52 |
| BM-65 | 210*170*240 | φ63 | 52 |
| BM-75 | 260*200*290 | φ71.8 | 60 |
| BM-85 | 280*215*320 | φ81.9 | 67.8 |
| BM-92 | 310*240*360 | φ92 | 78 |
| BM-95 | 310*240*360 | φ94 | 78 |
| BM-110 | 330*240*420 | φ109 | 91.5 |
| BM-125 | 390*290*500 | φ125 | 98 |
| BM-135 | 370*300*410 | φ134 | 110 |
Bloom manufacture screw element suitable for the following extruder products brand:
| No. | Brand Name |
|
1 |
APV |
| 2 | KOBE |
| 3 | OMC |
| 4 | Buhler |
| 5 | Kraussmaffei |
| 6 | Theysohn |
| 7 | Buss |
| 8 | Berstorff |
| 9 | Toshiba |
| 10 | Clextral |
| 11 | Labtech |
| 12 | USEON |
| 13 | Coperion |
| 14 | Lantai |
| 15 | JSW |
| 16 | Leistritz |
| 17 | Keya |
| 18 | Maris |
| 19 | others |
We can satisfy your different material needs:
A . according to appearance design
Convey screw segment
Mixing screw segment
Kneading block&disk
Transition screw element
Deep groave transfer element
Screw element for side feeder
1/2/3 flighted screw element
OEM special screw element
B . according to materials
For wear application:
Tool steel:W6Mo5Cr4V2

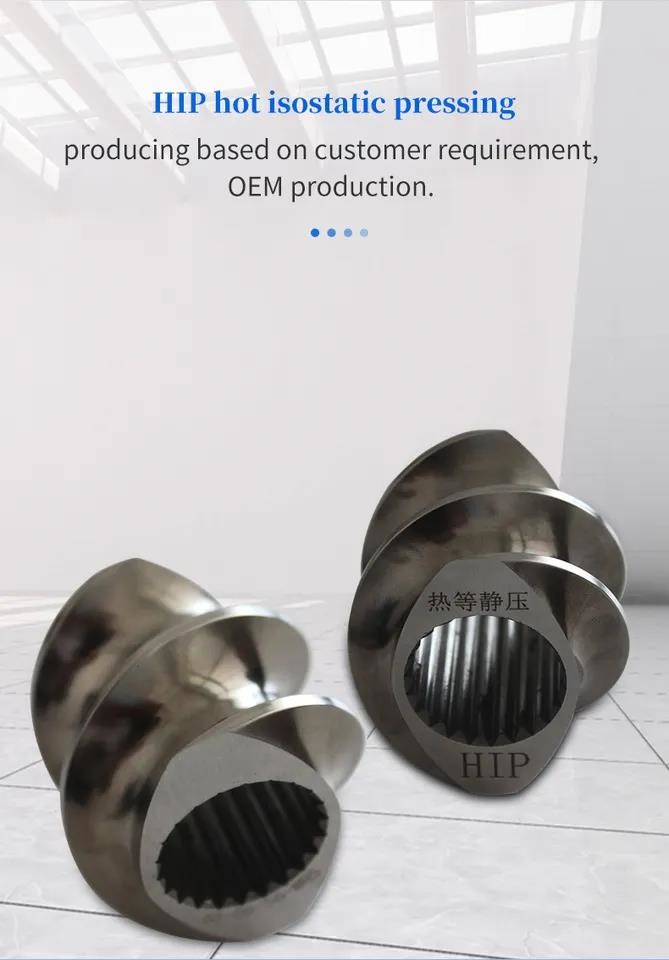

PM-HIP material:WR5,WR13,WR14,CPM10V,CPM9V
For corrosion application:
38CrMoAla
PM-HIP material:WR4,WR13,WR14,CPM10V,CPM9V
For wear and corrosion application:
PM-HIP material:WR13,WR14,CPM10V,CPM9V
Other materials:
Stainless Steel:316L,440C etc.
