High Quality Spare Parts Screw Element for Twin Screw Extruder
Product Description:

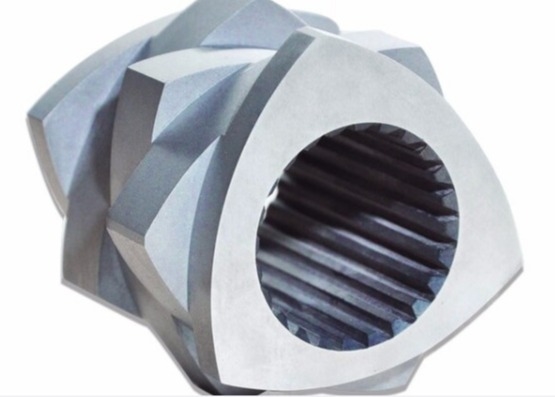

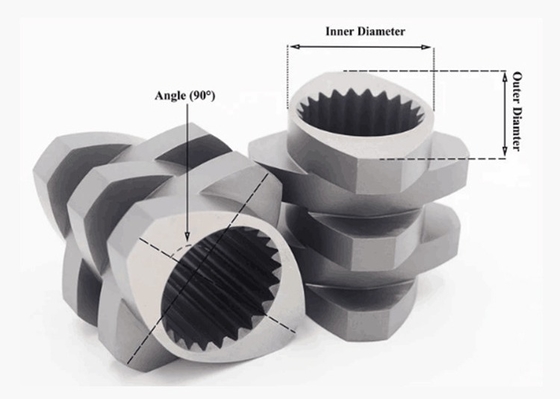

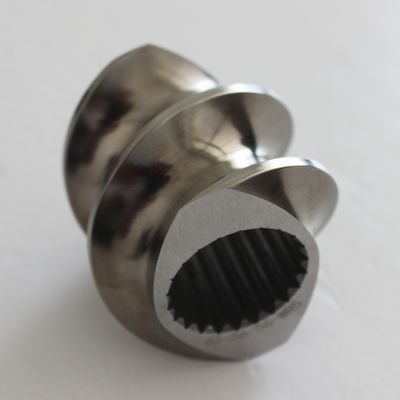

Bloom manufacture screw elements,barrels and other extruder machines.Screw elements are the main working parts for twin screw extruder which determined the quality and output of plastic products.With high quality,the screw elements assure plastic molecular mixing,cutting,spreading as well as reacting among themselves etc.Extremely high self cleaning performance assure the high quality of the whole production line,for this,our company combiend our experience for years,the merits about foreign countries and the customer’s use,then take them into action,designed all kinds of suitable processing screw element with reasonable parameters,high self cleaning performance,wear resistance,corrosion-resistance.
The function of screw element is mainly used to convey materials. Feeding and degassing sections generally have the long pitch to improve the material conveying and degassing. For material of low bulk density, feeding sections can use deep channel components to increase feeding capacity. The metering extruded segmented screw elements generally adopt the small pitch which is used to pressurize, improve the density of the material at the die head, and make the extrusion more stable.
Bloom manufacture screw element suitable for the following extruder products brand:
| No. | Brand Name |
|
1 |
APV |
| 2 | KOBE |
| 3 | OMC |
| 4 | Buhler |
| 5 | Kraussmaffei |
| 6 | Theysohn |
| 7 | Buss |
| 8 | Berstorff |
| 9 | Toshiba |
| 10 | Clextral |
| 11 | Labtech |
| 12 | USEON |
| 13 | Coperion |
| 14 | Lantai |
| 15 | JSW |
| 16 | Leistritz |
| 17 | Keya |
| 18 | Maris |
| 19 | others |
We can satisfy your different material needs:

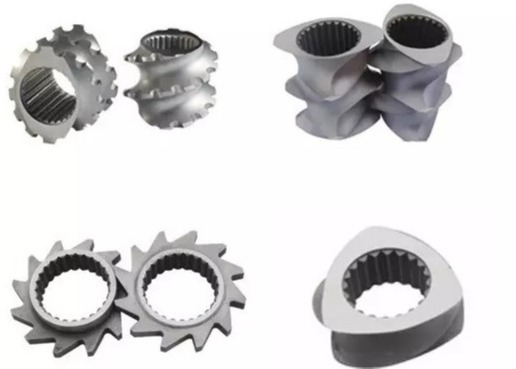

A . according to appearance design
Convey screw segment
Mixing screw segment
Kneading block&disk
Transition screw element
Deep groave transfer element
Screw element for side feeder
1/2/3 flighted screw element
OEM special screw element
B . according to materials
For wear application:
Tool steel:W6Mo5Cr4V2
PM-HIP material:WR5,WR13,WR14,CPM10V,CPM9V
For corrosion application:
38CrMoAla
PM-HIP material:WR4,WR13,WR14,CPM10V,CPM9V
For wear and corrosion application:
PM-HIP material:WR13,WR14,CPM10V,CPM9V
Other materials:
Stainless Steel:316L,440C etc.
Production Process Show
Testing Equipments Show
Packing&Delivery
Company Introduction
Our company Bloom(Suzhou) Materials Co., Ltd is a trading company especially for oversea sales, but our factory OUZI technology is specialized in the manufacturing of Replacement parts for Twin Screw Extruder. So far has over then 5 years of research and development production experience. Manufacturing Barrels, Gearboxes, Overall Liners and Screw Elements for Twin Screw Extruder. Our products cover all kinds of wear and corrosion resistant spare parts such as screw elements , barrels, shafts, plugs, couplings and so on. The screw diameter ranges from dia12.mm to dia.350mm. We do not produce single metal barrels and screw parts, but we also researched and produce bimetallic extruded screw barrels, which will make the life time of the parts double or triple increased. Our factory has strong technical force, excellent processing equipment, advanced production technology, strict inspection system and perfect after-sales service. My factory OUZI technology is the main supplier of spare parts of Leistritz China. We welcome all the friend oversea to contact and test my products, we are sure that Quality proves everything.If You give us one chance , we will return you inconceivable quality increased.
