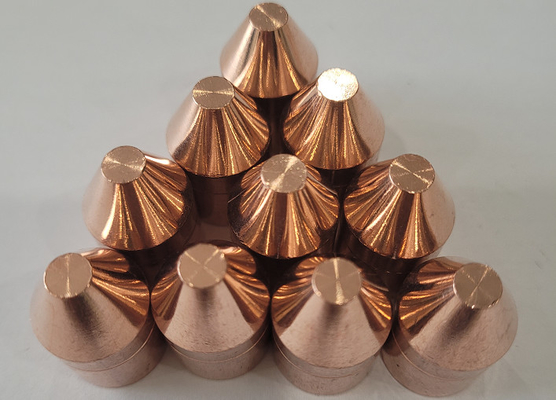

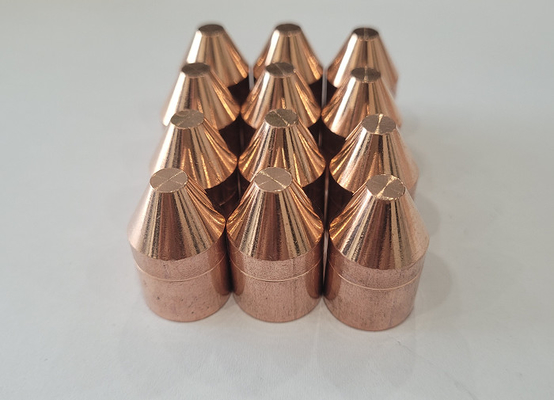

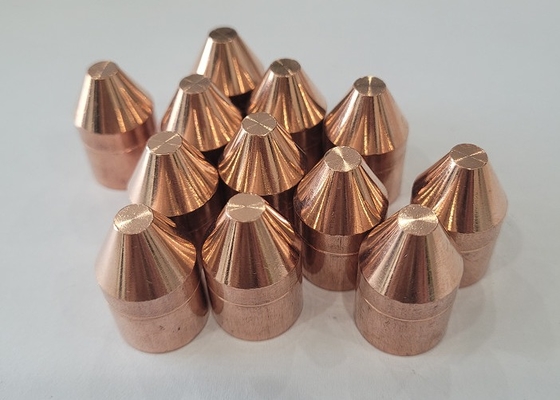

1. product description:
| Product Name | Factory Direct Welding Electrode Cap |
| Material | CuCrZr, CuBe2, or According to requirements |
| Material no. UNS (ASTM) | C18150, C17200, or According to requirements |
| Material description | Age hardenable Cu alloy with high electrical and thermal conductivity under a high degree of hardness and strength. |
| Size | According to customer's requirements |
| Application | Spot Welding |
2. Types of Welding Electrode Cap
| Pointed | Tapered from the full-diameter electrode shank to required size and with a flat surface, holds its shape well, but is difficult to dress in the machine unless a dressing tool of the exact taper is provided |
| Flat | Employs the full shank or stock size at the welding surface |
| Dome | Used for less precise work where easy dressing is of advantage. the dome shape provides a greater approach to the flat surface of the work |
| Offset | Used to make a spot weld closer to a vertical wall that is possible with a straight tip. the offset of the tip should be as slight as possible, as the electrode force or the compression load at the center line of the electrode axis will tend to cause bending of the tip. since the tendency of the electrode is to skid or deflect as the offset distance from the center of the electrode axis increases, offset tips should not be used except when required. |
| Radius | Used for the welding of aluminum and for many other precise applications because of the superior results to be obtained. the spherical surface is easier to clean without removing from the machine, will withstand higher pressures with less deformation and is more readily aligned in the holders. |
Welding Torches and Accessories :
1. Binzel 15AK,24KD,25AK,36KD Air Cooling Torch ,501D,602D Water Cooling Welding Torches
2. Panasonic 180A,200A,350A,500A Welding Torch
3. Otc 180A,200A,350A,500A Welding Torch
4. PSF / ESAB 205A,305A,405A,505A Welding Torch
5. Trafimet 15AK,24KD,25AK,36KD Welding Torch
6. TBI 15AK,24KD,25AK,36KD Welding Torch
7. KR 180A,200A,350A,500A Welding Torch
8. P80,AG60,PT31,AG100 ,SG51,JG60,JG100,SG55 Plasma Cutting Welding Torch
9. Tig welding Torches : WP9/WP12/WP17/WP18/WP26/WP20/WP27 Air/Water Cooling Torch
10. Mig/Co2 Welding Parts : contact tip , tip holder, swan neck, welding nozzle, gas diffuser, welding liner ,teflon liner, cable plug , euro connector ,panasonic connector,otc connector,insulatr ,feed roller ,protective paste ,wire feeder,wire feeder motor,
11.Tig /Argon Welding & Cutting Parts : electrode tip & nozzle , welding collect ,collect body,gas lens , ceramic nozzle, long cap , short
