New Type KCF Pipe for Nut Welding Guide Pin KCF Spot Nut 8.30 KCF Pin
1 . Descriptions:
Bloom Resistance Welding manufacture and supply various material guide sleeve,locating pin,KCF bushings,KCF sleeve.Our material include KCF alloy material,ceramic coated,Zirconia ceramic,Silicon nitride ceramic etc.To meet different clients' requirements.The standard size M4,M5,M6,M8,M10,M12,7/16 kcf sleeve are always in stock.Specifical specification can be customized according to your drawing.Welcome your enquiry!
KCF Guide Pins /Sleeve is not an insulation coating but a specially processed insulation material which does not peel.
Has been being used in resistance welding applications for several decades. It has an insulated skin on its surface. Any shape can be made quickly. Our standard shapes are cheaper in the business.
We generally use ceramic guide pins as a welding nut positioning pin, but because of the toughness of ceramics is poor, fragile, so now KCF guide pin instead of ceramic is more and more popular.
2 . KCF Guide Pin Technical Specification
Pin Material: KCF,AL2O3,ZrO2,Si3N4,Ceramic,Stainless Steel etc.
KCF Pins Diameter:M4,M5,M6,M8,M10,M12…
Application: KCF guide pins are widely used on projection welding,nut welding,stud welding
3 . Advantages:
▲high temperature strength
▲ superior thermal shock resistance
▲ excellent wear resistance
▲ mechanical fatigue and creep resistance
▲ Excellent non-wetting property with good oxidation resistance
▲ It is convenient to process the rod shape, and the period will be shorter
4 . KCF standard pin
| A | B | C | D | E | F | G | L | Q | R | |
| KCF-M4-(B) | 3.2 | 4～7 | 10 | 5 | 2 | 22 | 4 | 31 | 2.5 | 9 |
| KCF-M5-(B) | 4.1 | 5～8 | 10 | 6 | 2.5 | 22 | 4 | 32 | 3 | 13.3 |
| KCF-M6-(B) | 4.9 | 6～9 | 10 | 7 | 2.5 | 22 | 3 | 32 | 3.5 | 15.5 |
| KCF-M8-(B) | 6.8 | 8～11 | 12 | 8 | 3 | 23 | 3 | 34 | 5 | 17.5 |
| KCF-M10-(B) | 8.5 | 10～13 | 15 | 10 | 3.5 | 24 | 3 | 37 | 7 | 30.5 |
| KCF-M7/16-(B) | 9.7 | 11～14 | 16 | 12 | 4 | 24 | 3 | 39 | 8 | 37.5 |
| KCF-12-(B) | 10.4 | 12～15 | 16 | 12 | 4 | 24 | 3 | 39 | 9 | 41 |

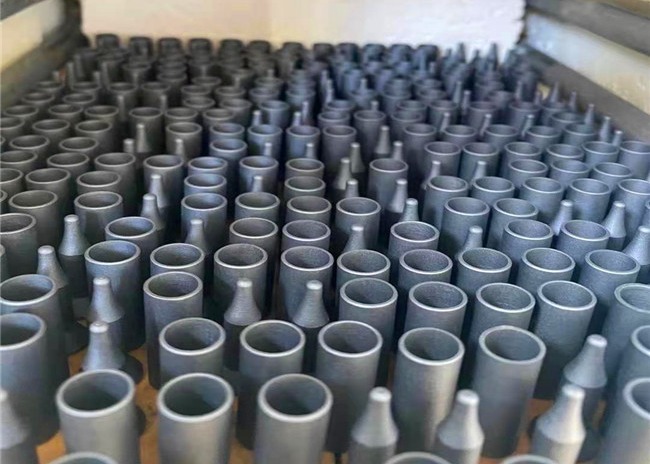

5 . More pictures
