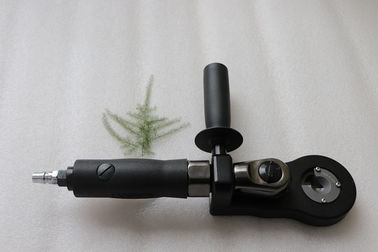

Compressed Air Spot Welding Electrode Material,Light Pneumatic Tip Dresser
Main Features
1) Small, lightweight and easy to operate.
2) Only need compressed air.
3) Low cost,high speed,reliable performance.
4) Suport various shapes of weld electrode.
5) Easy to change cutter and holder .
| Items | Ratchet Tip Dresser |
| Brand | BLOOM |
| Electrode Diameter | φ8mm-φ19mm |
| Application | Spot welding |
| Type | Handheld type |
Dressing Electrodes vs. New Tips
Worn electrode tips produce either poor welds or no welds at all, limiting both quality and productivity. Two possible solutions to worn tips are to (1) replace them with new, or (2) recondition existing tips on either a lathe, drill press, or with a portable Electrode Dresser. Replacing tips is a costly and time consuming alternative. Reconditioning tips on standard machine shop equipment, although providing uniformly dressed electrodes, cuts valuable production time. Reconditioning worn tips with an Electrode Dresser, however, is a convenient, economical solution that minimizes downtime.

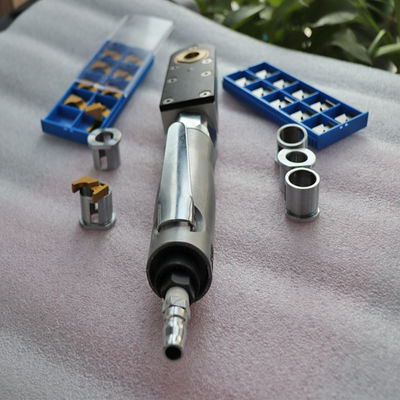

Type of cutter cases
The cutter case bore diameter acts as a guide so that the cutter dresses at the correct location relative to the tip. Please specify a cutter case that matches the tip size.
| Cutter No. |
TIP shape (Normal) |
Max diameter that can be repaired (Dø) |
Reserve articles |
| <1> |
5R 6R 6.5R 8R |
10ø 12ø 13ø 16ø |
6R x 12ø 6.5R x 13ø 8R x 16ø
|
| <2> |
10R or more ( to 200R) |
18ø
|
16R x 18ø 20R x 18ø |
| <3> |
Aø x 6R Aø x 6.5R
Aø x 8R
|
12ø 13ø
16ø
|
5ø x 6.5R x 13ø 6ø x 6.5R x 13ø 5ø x 8R x 16ø 6ø x 8R x 16ø 8ø x 8R x 16ø |
| <4> |
r x Aø x 6R r x Aø x 8R |
12ø 16ø |
40r x 6ø x 8R x 16ø |
| <5> |
5 to 6r x60° 3 to 4r x90° 5r or more x90° |
13ø 16ø 18ø |
none |
| <6> |
6 to 9ø x 50° 10ø or more 50° 5 to 7ø x 60° (6ø x60°) 8 to 9ø x 60° 10ø or more x60° 3 to 4ø x 75° 5 to 6ø x 75° 7ø or more x 75° 3ø x 90° 4ø x or more 90°
3ø or more x 120°
|
13ø 16ø 13ø 16ø 16ø 18ø 13ø 16ø 18ø 16ø 18ø
18ø
|
6ø x 60° x 13ø 6ø x 60° x 16ø
6ø x 75° x 16ø
4ø x 90° x 18ø 5ø x 90° x 18ø 6ø x 90° x 18ø 5ø x 120° x 18ø 5ø x 120° x 18ø |
| <7> | r x Aø x θ° | Dø | |
| <8> | Aø x r x θ° | Dø | |
| <9> | F | 18ø | F x 18ø |
