Insulating Locating Pins for Jigs & Fixtures - Threaded
1. Advantages:
▲high temperature strength
▲ superior thermal shock resistance
▲ excellent wear resistance
▲ mechanical fatigue and creep resistance
▲ Excellent non-wetting property with good oxidation resistance
▲ It is convenient to process the rod shape, and the period will be shorter
2 . KCF standard pin
| A | B | C | D | E | F | G | L | Q | R | |
| KCF-M4-(B) | 3.2 | 4～7 | 10 | 5 | 2 | 22 | 4 | 31 | 2.5 | 9 |
| KCF-M5-(B) | 4.1 | 5～8 | 10 | 6 | 2.5 | 22 | 4 | 32 | 3 | 13.3 |
| KCF-M6-(B) | 4.9 | 6～9 | 10 | 7 | 2.5 | 22 | 3 | 32 | 3.5 | 15.5 |
| KCF-M8-(B) | 6.8 | 8～11 | 12 | 8 | 3 | 23 | 3 | 34 | 5 | 17.5 |
| KCF-M10-(B) | 8.5 | 10～13 | 15 | 10 | 3.5 | 24 | 3 | 37 | 7 | 30.5 |
| KCF-M7/16-(B) | 9.7 | 11～14 | 16 | 12 | 4 | 24 | 3 | 39 | 8 | 37.5 |
| KCF-12-(B) | 10.4 | 12～15 | 16 | 12 | 4 | 24 | 3 | 39 | 9 | 41 |

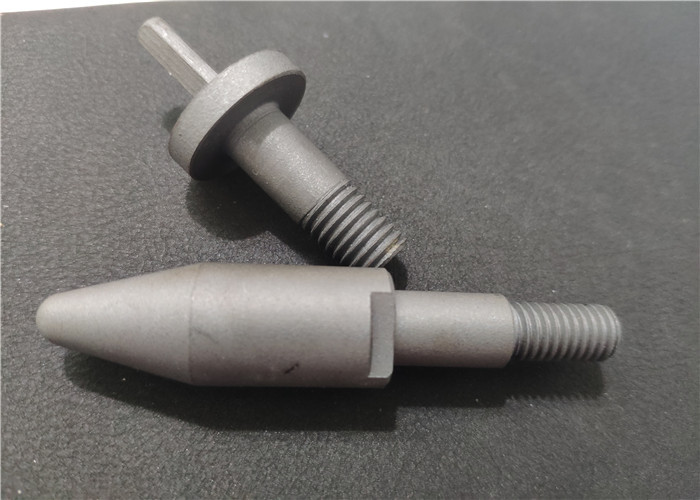

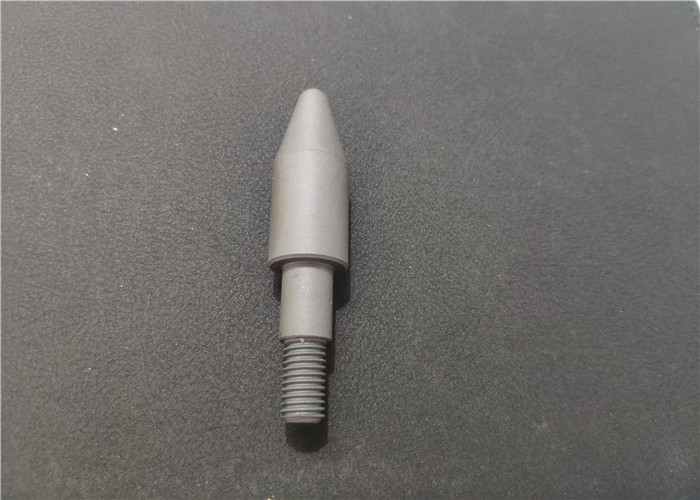

3. More pictures
